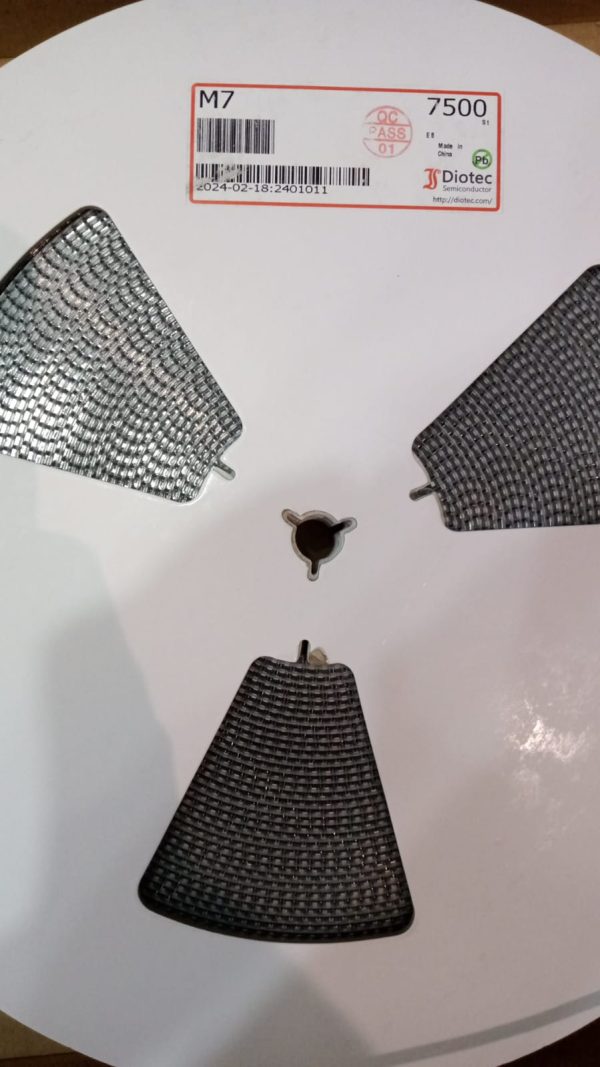

M7 – BIGTEKK

DIODE STANDARD 1000V 1A DO214AC

Mfr	Diotec Semiconductor
Series	–
Packaging	Tape & Reel (TR) Cut Tape (CT) Digi-Reel®
Part Status	Active
Technology	Standard
Voltage – DC Reverse (Vr) (Max)	1000 V
Current – Average Rectified (Io)	1A
Voltage – Forward (Vf) (Max) @ If	1.1 V @ 1 A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	1.5 µs
Current – Reverse Leakage @ Vr	5 µA @ 1000 V
Capacitance @ Vr, F	–
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
Operating Temperature – Junction	-50°C ~ 150°C

M7
